Design and deployment

Design of mite

Mite is designed as a distributed system made up of several components. Some are required, and others are optional. The components communicate over TCP, so you can run them anywhere that they can talk to each other in this fashion: as ordinary processes on a single machine, in containers (on a single machine or in a cloud container orchestration environment like Kubernetes) or on different machines entirely.

The components that make up mite are:

• controller*: manages a test scenario and feeds tasks to the runners. (For more on how mite tests are organized, see the README)

• runner: responsible for injecting the test load into the target system

• duplicator*: a message router between the controller/runner and their downstream components

• collector: logs messages appearing on the mite message bus to a file

• receiver: dispatches incoming messages to connected processors

• recorder*: listens for special messages on the bus and records them to a file. This is used for data creation scenarios.

• stats: aggregates raw messages from the controller and runner into statistical summaries

• exporter*: (aka prometheus exporter) listens for aggregations from the stats component, and exposes these via HTTP to a Prometheus instance

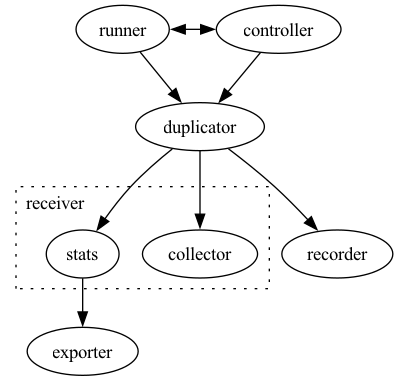

The components marked with an asterisk are singletons; the rest can be scaled up to meet the demand of the test. The communication pathways between the components are represented in the following diagram:

Useful topologies

While itʼs true that increasing the heft of a test scenario increases the load on all miteʼs components, nowhere is the increase more apparent than on the runners, the component directly responsible for injecting the load on a 1:1 basis into the target system. Therefore, it makes the most sense to separate the runners from the other components of mite. This both avoids interference between the components and makes it easy to scale the resources devoted to the runners.

A note on resource usage

In the following sections, we describe our “real-world” usage of mite. This infrastructure is somewhat overprovisioned for our needs, but our focus has been on the performance of the applications which we test. While not wishing to be profligate, we believe it would be a mistake to shrink the injection infrastructure close to its performance limits. When resource constraints appear in an NFT exercise, they should stem from the system under test and not the test apparatus. Anything other than the most occasional exception to this rule is an indication that the NFT is not efficiently organized.

In fact, we have reason to believe that the peak performance of mite, in terms of maximum throughput per CPU and memory devoted to running mite, is significantly above what is implied by these numbers. Furthermore, our resource usage already compares favorably with other performance engineering teams in Sky using different tools, even without having performed a dedicated performance tuning of our injection infrastructure.

Single machine

In the doc/example/ directory, you will find a docker-compose.yml file which will deploy a full mite stack, along with supporting programs, on your local machine. While impractical for running a significant load injection exercise (due to the performance limitations of a single machine), this serves to illustrate the mechanics of getting the components to talk to each other and the outside world. For a concrete, configuration-level view of setting up a mite pipeline, the reader is referred to the files in that directory. In the sections that follow, we will discuss a few more abstract considerations for deploying mite in different kinds of environments.

Virtual machines

At Sky, we have run mite in a configuration with 4 virtual machines. One, with 16GB of memory and 16 cores, hosts the controller, duplicator, stats, exporter, and (if warranted) collector and recorder. The other three have 8GB of memory and 16 cores each, and each host 16 runner processes. Our system under test consists of a 1:1 replica of the production environment, deployed with each weekly release candidate. The underlying hardware is in a corporate datacentre (though it could just as easily correspond to servers rented from a colocation facility or VM provider). We regard this as fairly typical of a traditional NFT setup in a medium to large tech company.

We have used this infrastructure to inject load of up to 12k tps into our system under test across a variety of journeys, including some which simulate full user interaction with the platform, i.e. signin → modify data → signout.

(Note that the provisioning of our test injection infrastructure is also undercharacterized above: far more important than memory for the runners is the bandwidth from them to the system under test – which is also less straightforward to quantify in the than VM size. Our injectors and system under test are colocated in the same datacentres, both on the inside of the corporate firewall. This provides ample bandwidth for our use case.)

We hope that this description of our usage will provide you with an idea of the scale of infrastructure which mite requires to run, and will help you to architect your deployment as well.

The Cloud

In addition to the traditional VM-based deployment described above, we have also used mite in a “cloud” environment – specifically in a kubernetes cluster. As above this is provisioned by the company, but could just as easily be part of a hosted kubernetes offering such as GKE.

In addition to the difference in the space into which the applications are deployed, this environment also comes with a different release cadence: continuous delivery is used with nightly NFT runs (recycling the resources that are used to run CI testing during the day as developers work on the code). Finally, the environment also has NFRs that are roughly an order of magnitude larger than the traditional VM-based one.

Mite as a distributed system made of discrete units is in many ways well-adapted to such an environment. We have deployed it into the cluster with the following resource allocations:

Component	Replicas	CPU	Memory
Controller	1	2	500MB
Duplicator	1	2	100MB
Exporter	1	0.25	100MB
Runner	50	1	500MB
Stats	20	1	50MB

For injecting loads of up to 22k tps, we have found 50 runners and 20 stats to be more than sufficient. (We have noted that the abstract “CPU” is more performant in this environment than in the VMs in the previous section.) As before, the network bandwidth used by mite in this environment is not characterized; we have not run into problems with our assumption that all the relevant pipes are fat enough for within-cluster communication of the scale that we require.
